Perfex Swivel Frames-Hanging Graphic Hardware

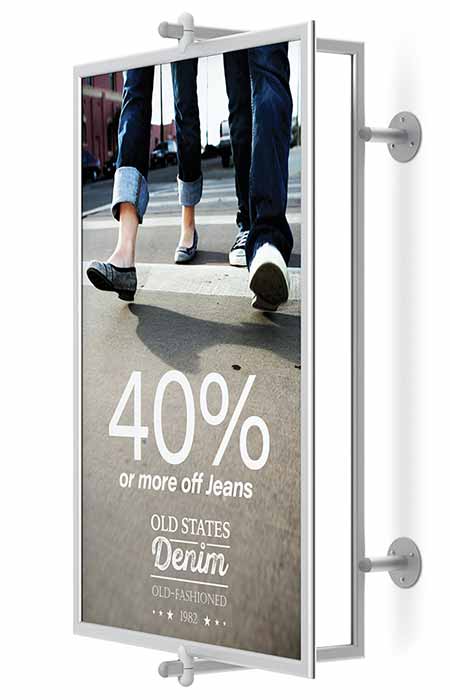

Swivel and tilting wall mount sign frame

Wall Swivels - Includes 2 of 3" Standoffs poles and 2 of 3-1/4" round wall mounts

Hanging Displays/Hanging Frames - Perfex Swivel Frames

Ceiling mount swivel frame silver finish

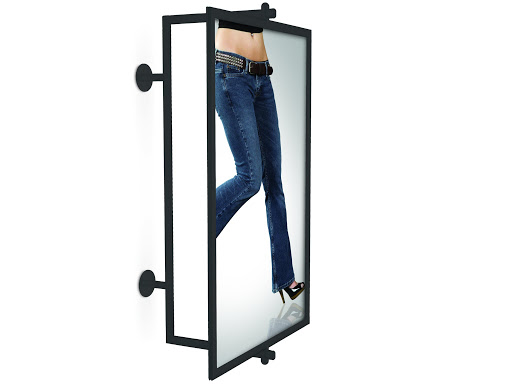

Wall mount swivel frame black finish

Shown 2 units side by side

Ceiling mount frames are not designed to flip top side down

All swivel frames are vertically oriented

Side graphic entry slot for wall mount frame

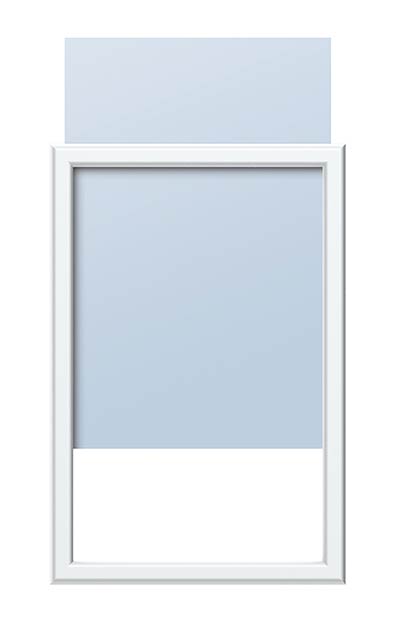

Top graphic entry slot for ceiling mount frame

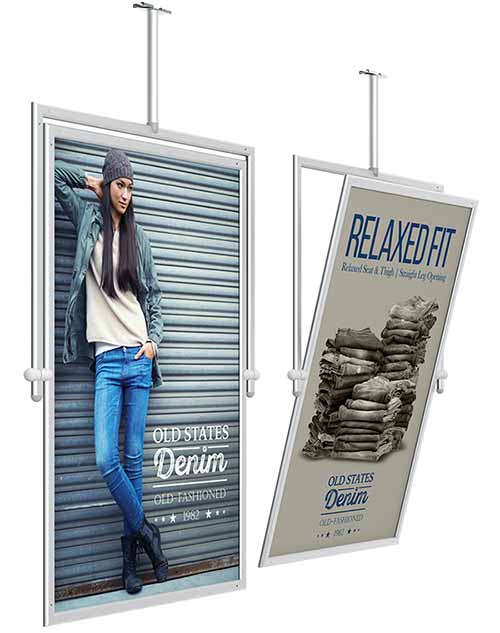

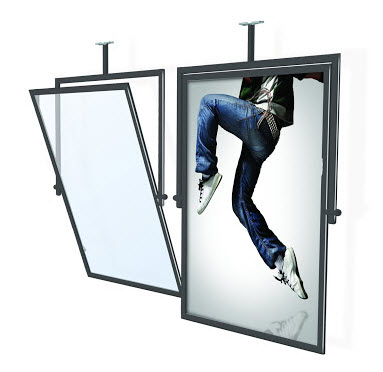

Swivel and tilting ceiling mount sign frames

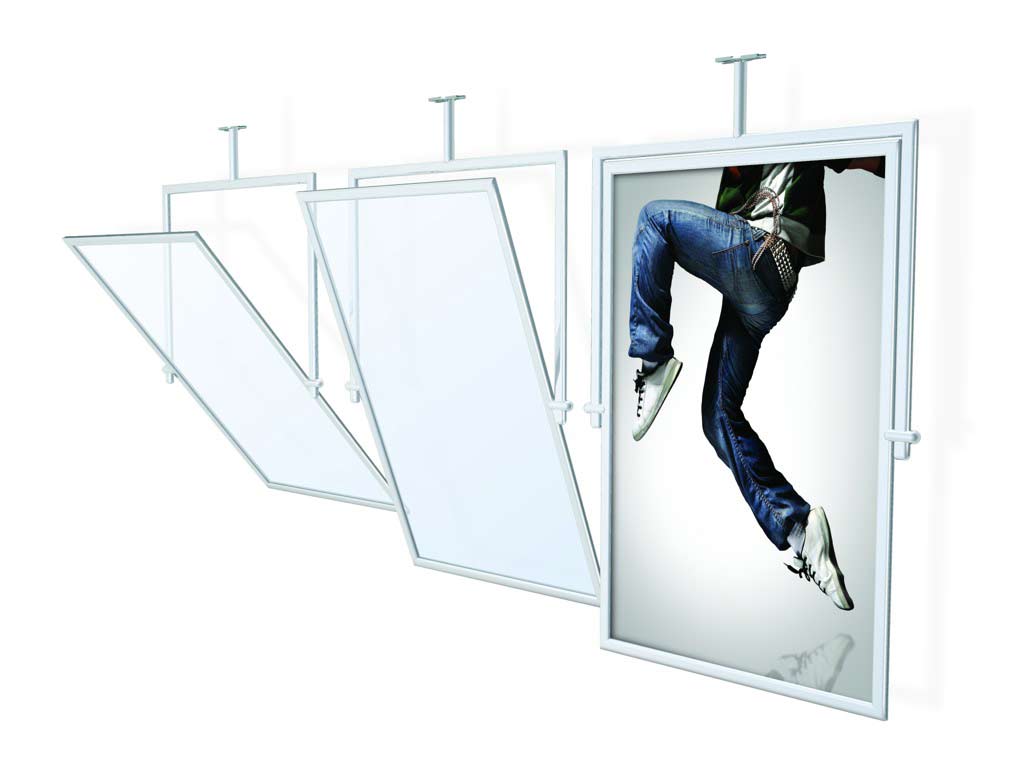

Multiple angle graphic presentations

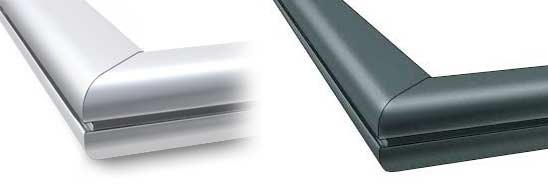

Perfex curvilinear Silver and Black frame

All swivel frames are vertically oriented
All swivel frames rotate 360 degrees
Ceiling-mount frames are not designed to flip upside down; the top has an open graphic slot
Aluminum frames allow multiple-angle graphic presentations
Wall-mount swivel frames include two 3" standoffs and two 3-1/4" wall mounts
Ceiling swivel frames include a 9" standoff and a grid ceiling anchor
Attractive satin finish
3/16" thick graphic entry slot — side-loading for wall-mount frames or top-loading for ceiling-mount frames
For double-sided viewing: insert two 3/32" thick graphics back-to-back, or one 1/8" thick double-sided graphic with two optional protective lenses to fit the 3/16" slot
Frames are open on both sides for double-sided display

Model	Style	Graphic Size	Mounting Hardware	Orientation	Lens	Backing	Material	Color
PXCSV1	Ceiling Swivels	22" x 28"	Includes 1 Standoffs and 1 grid ceiling anchor	All frames are vertically long	Not included	No backing	Aluminum	Satin silver or Matte black
PXCSV2		24" x 36"
PXWSV1	Wall Swivels	22"w x 28"h	Includes 2 Standoffs and 2 round wall mounts
PXWSV2		24"w x 36"h

Accessory

Clear plastic overlay lenses, sold in pairs	Coroplast frame back. White, 4 mm corrugated plastic board.	Coroplast with clear plastic lens combo pack. Includes one 4 mm corrugated plastic board and two clear lenses.

Item	Our Price	Option / Quantity / Buy
Perfex Ceiling Swivel Frame 22"x28"	$150.88	Color *
Perfex Ceiling Swivel Frame 24"x36"	$167.05	Color *
Perfex Wall Swivel Frame 22"wx28"h	$160.12	Color *
Perfex Wall Swivel Frame 24"wx36"h	$176.30	Color *

Accessories for Perfex Swivel Frames

Image	Item	Our Price	Option / Quantity / Buy
	Clear Plastic Lenses 22" x 28": CPL7	$22.17	*
Sold in pairs.
	Clear Plastic Sheet 24" x 36"	$25.16	*
Sold in pairs.
	Coroplast Back 22" x 28": COR7	$10.30	*
White, 4mm corrugated plastic board. Make excellent frame backs. Sold individually.
	Coroplast Back 24" x 36": COR8	$12.90	*
White, 4mm corrugated plastic board. Make excellent frame backs. Sold individually.
	Clear Lens & Coroplast Combo 22" x 28"	$28.13	*

	Clear Lens & Coroplast Combo 24" x 36"	$35.17	*

Perfex Swivel Frames – 360° Rotating Aluminum Display Frames

Perfex Swivel Frames offer a versatile 360° rotation, allowing for multiple-angle graphic presentations in a sleek aluminum design. All models are vertically oriented for consistent viewing.

Wall-mount versions include two 3" standoffs and two 3-1/4" wall mounts, while ceiling-mount versions feature a 9" standoff and a grid ceiling anchor. Ceiling models are not designed to flip upside down, as the top of the frame has an open graphic slot.

A 3/16" graphic entry slot is located on the side for wall-mount frames or on the top for ceiling-mount frames. For double-sided displays, insert two 3/32" thick graphics back-to-back, or one 1/8" thick double-sided graphic with two optional protective lenses. Frames are open on two sides for visibility from both directions.

Details

Hardware Warranty	Lifetime: A limited lifetime warranty against defects in materials or workmanship affecting the quality and function of its products when used in the correct manner.
Production Time	Usually ships in 1 week.
Graphic Printing	The base price includes hardware only. Graphics are sold separately.
Product Category	Hanging Graphic Hardware
Product Origin	Made in the USA
Product Summary	360° rotating Perfex Swivel Frames in satin aluminum, available for wall or ceiling mounting, with double-sided display and multiple angle presentation.

Instructions

Wall Swivel Perfex Frame

File Size: 529.93 KB

Download

Template files

	Perfex Swivel 22"w x 28"h	File Size: 65.23 KB	Download
	Perfex Swivel 24"w x 36"h	File Size: 59.68 KB	Download
