Smart LED Light Box Display

Imported from China
-

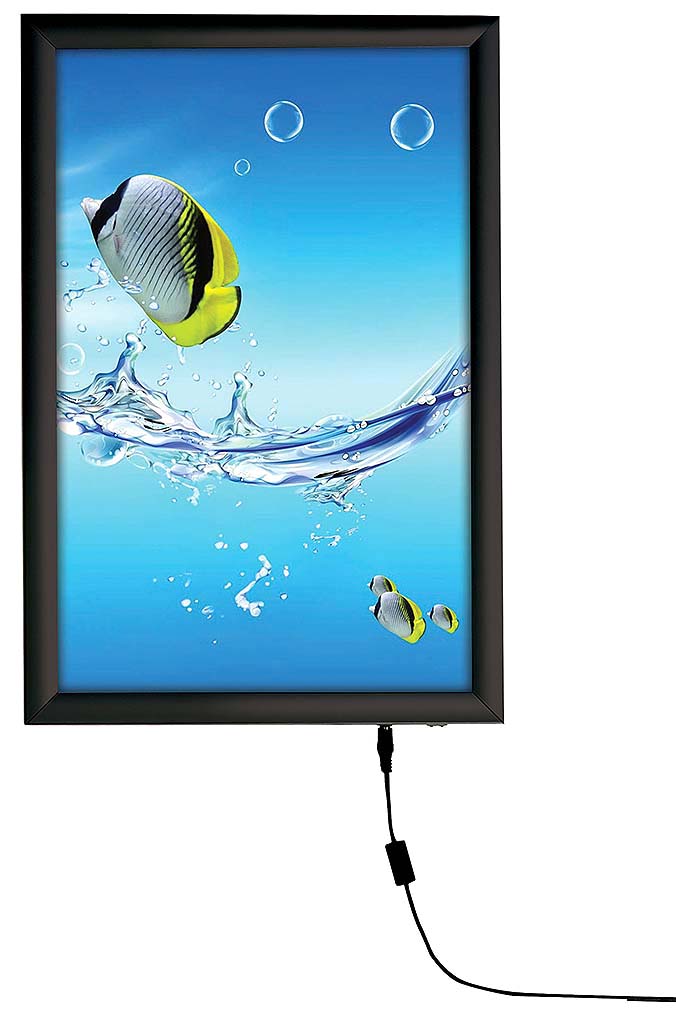

Wall mounting Smart LED Box 11x17

11x17 black

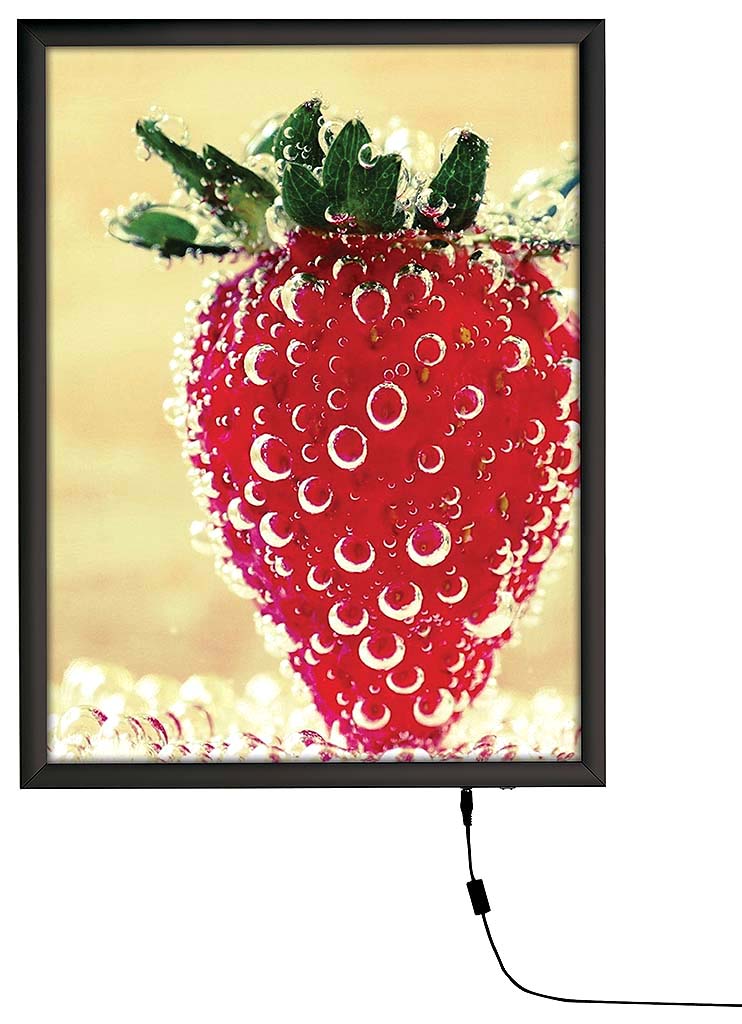

Wall mounting Smart LED Box 18x24

18x24 black

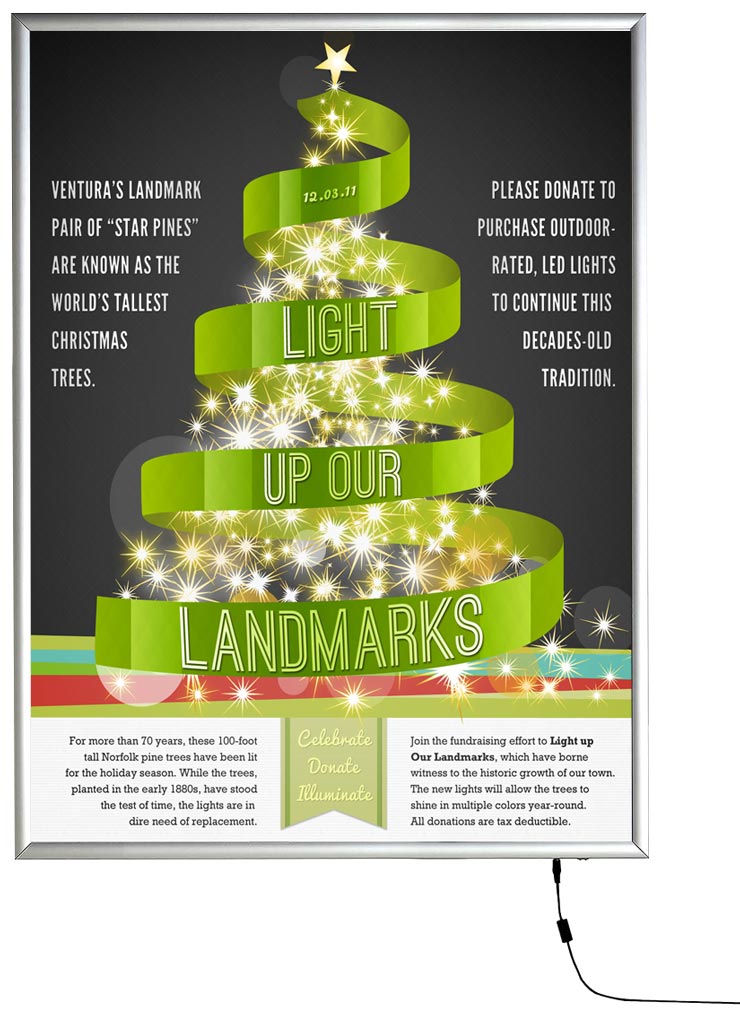

Smart LED Box 30x40

30"x40" silver

LED poster frame 30x40

Built in on-off switch

Slim profile Smart LED Light Box

8ft. long power cord

illuminated 24x36 poster frame

Pre-treated light guided panel diffuses light evenly

illuminated poster frame

mounting hardware included

Slim profile LED light panel

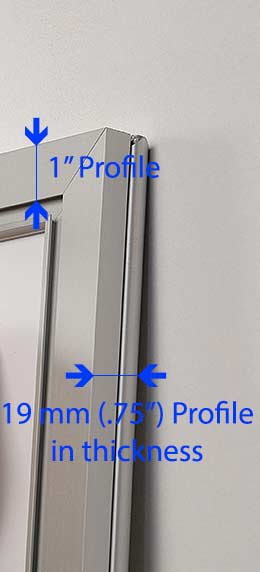

19mm thick, 1 inch wide LED snap frame

  • Slim profile frame: frame is 3/4 inch (19 mm) in thickness except 36" x 48" model
  • 50,000 hour bulb life
  • Built-in on/off switch
  • extremely durable - no fragile tubes or bulbs, and no glass, making it an ideal choice for highly frequented traffic areas
  • Snap frames allow easy graphic changes
  • Offers evenly diffused lux in all sizes

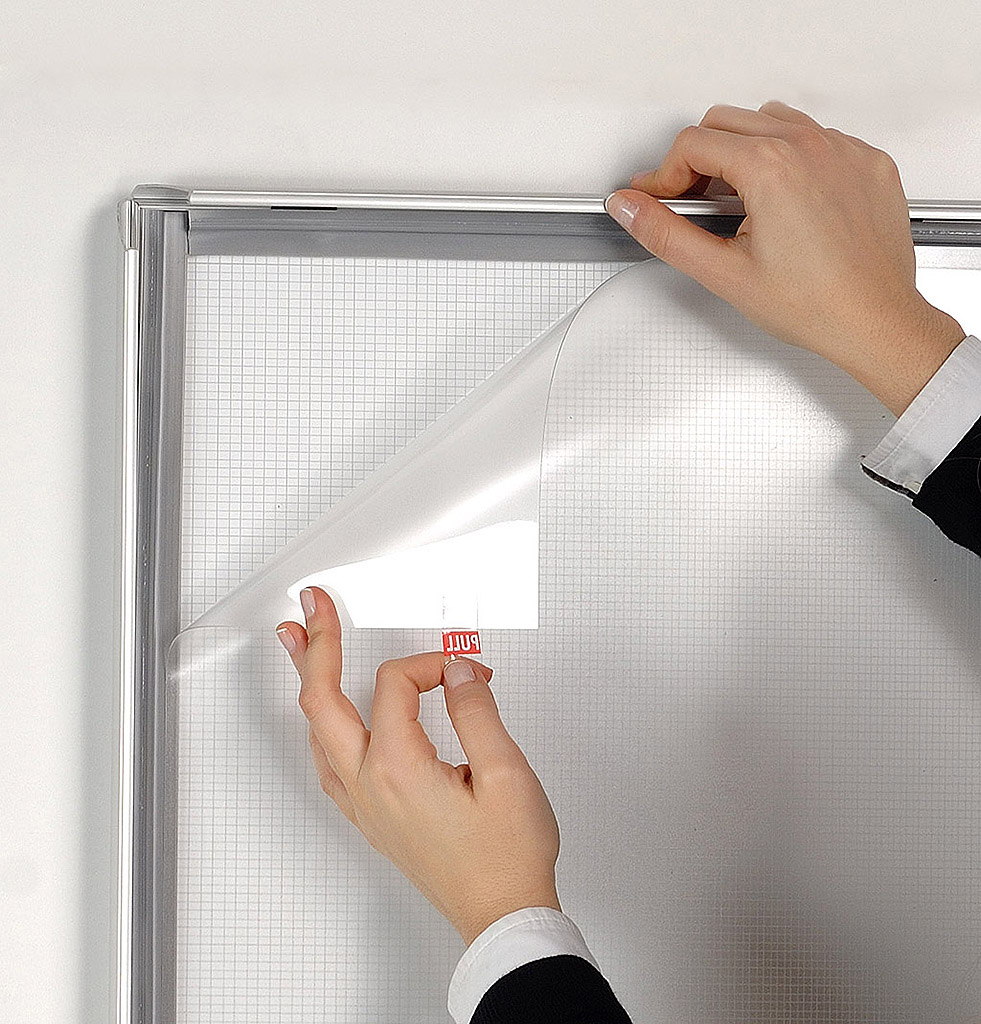

  • Clear anti-glare protective lens included
  • Power cable is in a fixed position as shown in images below
  • Specially treated acrylic in the middle provides a even lighting.
  • Single sided, Available in 6 sizes
  • Recommended graphic material: 22mil translucent PVC

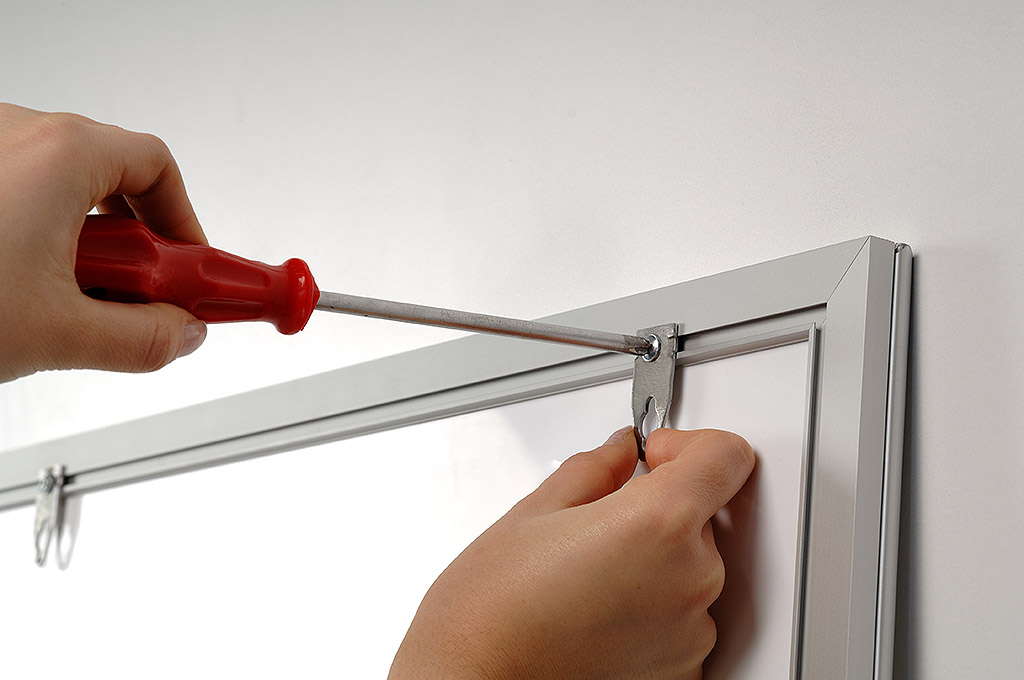

  • Comes with mounting hardware to mount LED frame in portrait or landscape position
  • 98" long cord with power supply
  • All units have passed CE/UL PAT tests and are supplied with quality certificates
Model Graphic Size Orientation Lens Bulb Material Color
ULD25TB017 11" x 17" Mount vertically or horizontally Clear lens included 50,000 hour bulb life Aluminum snap frame Silver or Black
ULD25TB018 18" x 24"
ULD25TB022 22" x 28"
ULD25TB024 24" x 36"
ULD25TN034 30" x 40" Sliver
ULD35TN036 36" x 48"

Snap Open LED Light Box from 11"x17" up to Large Poster Size 3'x4'
This LED poster frame disperses light across the displayed poster as it is illuminated at the edges by LED bulbs making it also very thin as 0.75”. It’s also called slim light box because of its thin frame profile. The frame snaps open from the front to allow quick and easy graphic changes. LED snap frames are ideal for retail stores, corporate environments and public transportation areas.

Details

Hardware Warranty One Year
Production Time Usually ships in 1 to 2 business days.
Graphic Printing The base price includes the hardware only. Graphics are sold separately.
Category Hanging Graphic Hardware
Product Imported from China

Instructions

Smart LED Light Box Display File Size: 654.79 KB Download

Template files

Template files not available.
