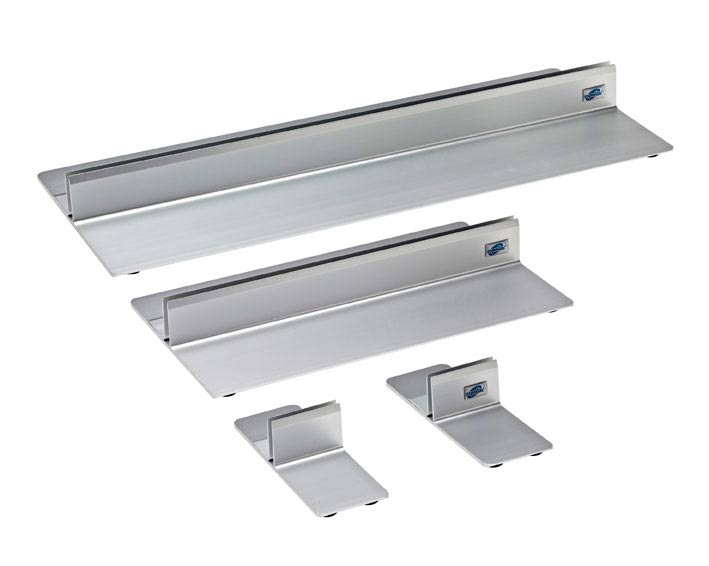

- Create any shape in rigid board or panel materials up to 19 mm (3/4") thick
- Panel Base holds the board in a firm grip
- No drilling on the rigid graphic board required
- Adjustable double L shaped sign base
- Panel Base is available in four widths

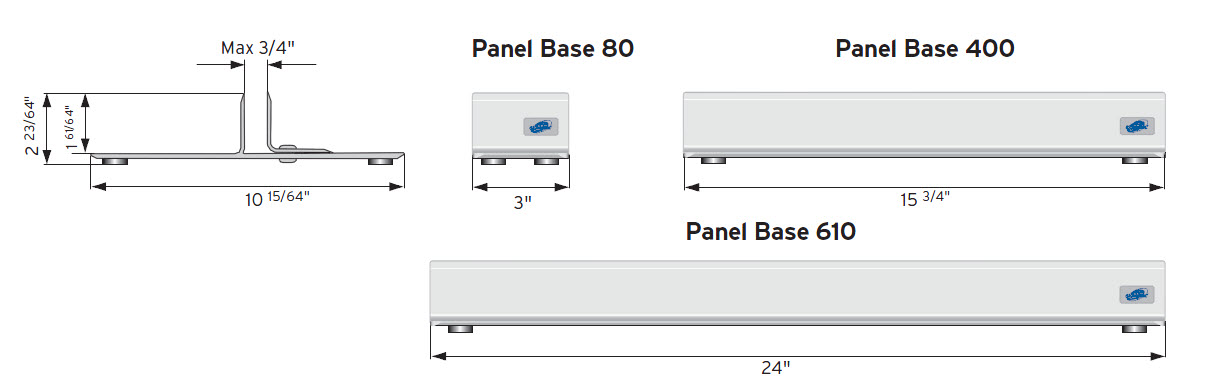

- 10-15/64" long from front to back, 2-3/8" high
- Recommended max panel height 70" for 3" pair, 15-3/4", 24" wide model, depending on the material

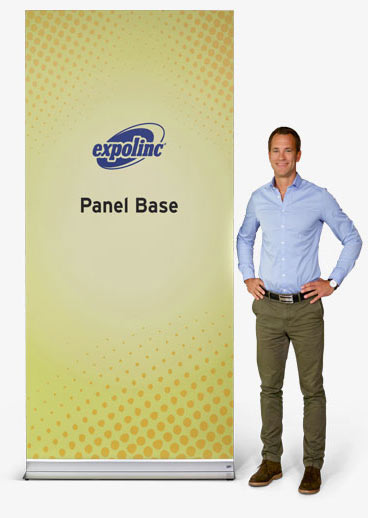

- New 48" wide model holds up to 8 feet
- 1-61/64" at the bottom of the graphic becomes invisible when the graphic is inserted
- Use multiple units for larger panels
- The whole system can be lifted holding the panel

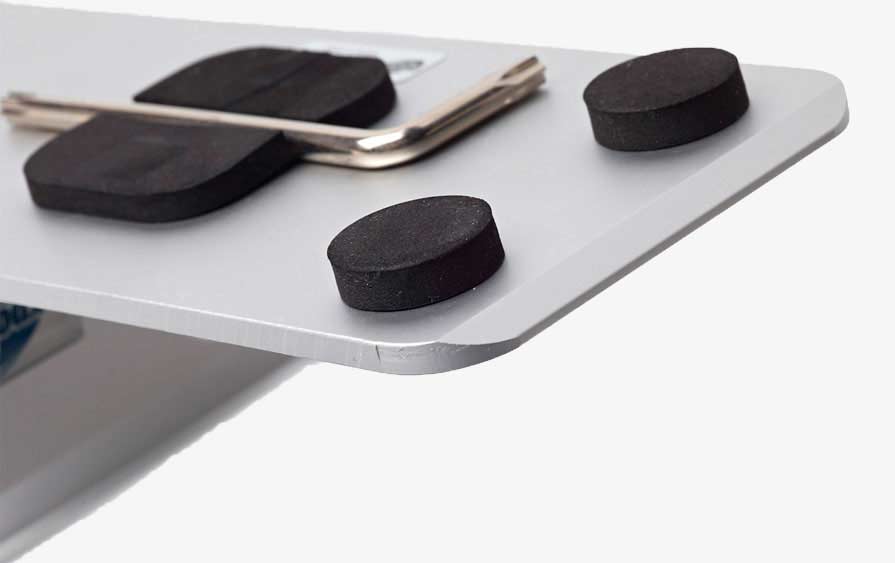

- Synthetic rubber feet adds stability. Use locking key to adjust the opening and secure
- Great for lobbies, tradeshow floors, malls, etc.

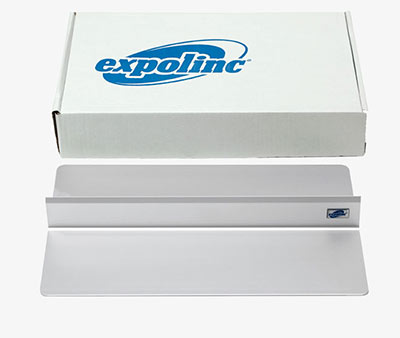

- Panel Base is delivered in a cardboard box
Model | Description | Width | Height | Maximum opening | Material | Color | Weight |
6401 | Panel Base 80 (Pair) | 3" | 2-3/8" | Adjustable up to 3/4" opening | Aluminum | Silver | 1.5 lbs. |
6404 | Panel Base 400 | 15-3/4" | 3.75 lbs. | ||||
6406 | Panel Base 610 | 24" | 5.5 lbs. | ||||
6412 | Panel Base 1220 | 48" | 16 lbs. |
